PON Transceiver

All transceivers are 100% compatible with major brands like Cisco, HP, Juniper, Nortel, Force10, D-link, 3Com.SisoTT can also provide customized services and LOGO.

  • Catalog
  • Warranty
  • Contact us

Description:

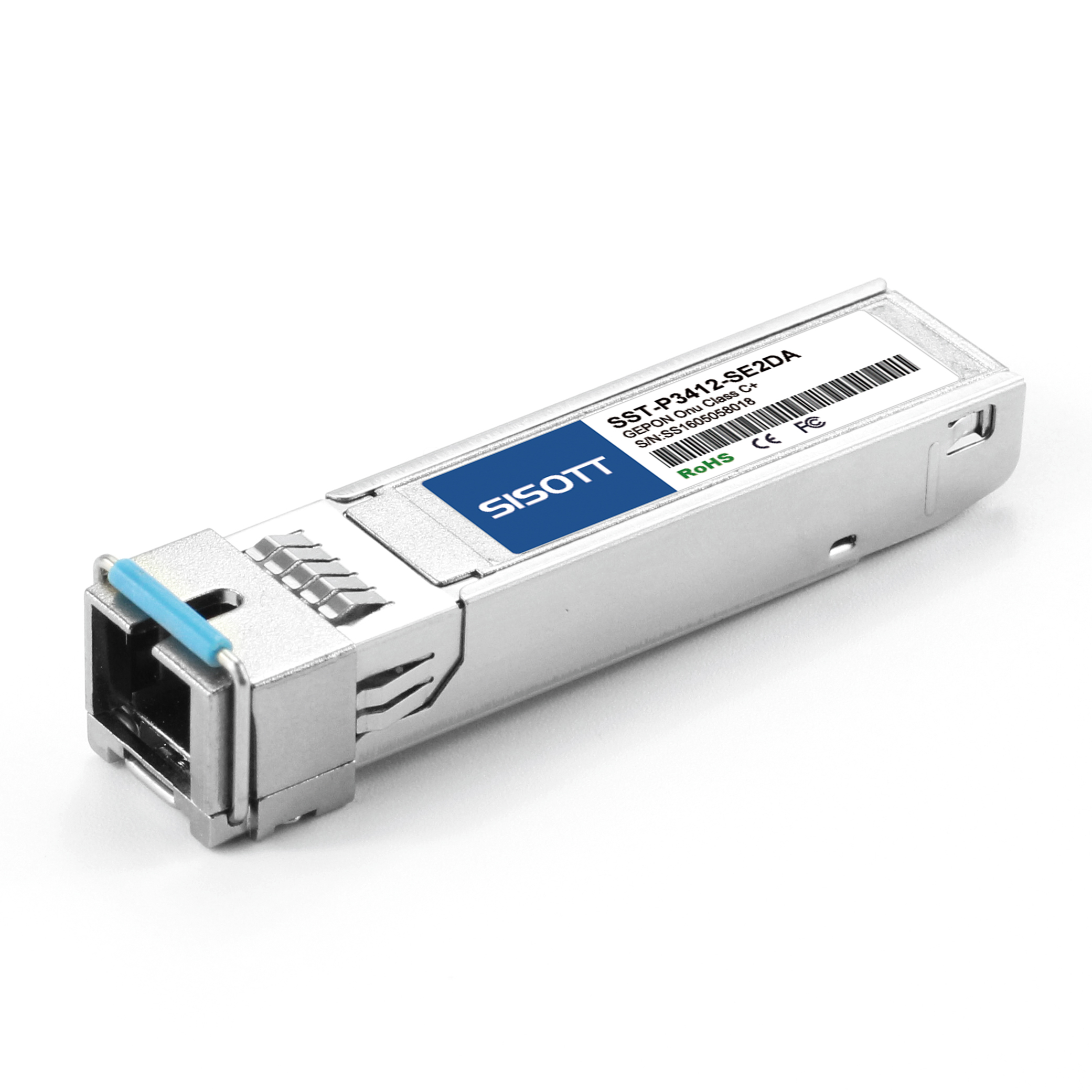

The GEPON transceiver is a high performance module for single fiber by using 1310nm/ 1490nm/ 1550nm continuous-mode transmitter and 1490nm/ 1310nm/ 1550nm burst-mode receiver. It can use for optical line terminal (OLT) or optical network unit (ONU) for IEEE Stud 802.3ah™ -2004 .The GEPON transceiver is in SFP/ XFP/ SFF interface. The GEPON transmitter section uses a 1310nm/ 1490nm/ 1550nm DFB LD with automatic power control (APC) function and temperature compensation circuitry to ensure stable extinction ratio overall operating temperature range. And it is Class I laser compliant IEC825 and CDRH standards. The GEPON receiver has a hermetically packaged APD-TIA (trans-impedance amplifier) pre-amplifier and a limiting amplifier with LVPECL compatible differential outputs.


Applications:

  • Gigabit Ethernet Passive Optical Network (GEPON) OLT
  • IEEE 802.3ah 1000BASE-PX20++
  • Burst mode application.
  • FTTx WDM Broadband Access
  • Gigabit Ethernet Passive Optical Network (GEPON) ONU



Performance Feature:

  • Complies with IEEE 802.3ah
  • 1490nm transmitter for continuous mode; 1310nm receiver for burst-mode (OLT)
  • 1310nm transmitter for burst-mode; 1490nm receiver for continuous mode (ONU)
  • Compliant with ROHS
  • Maximal reach 20km
  • Integrated with micro-optics WDM filter for dual wavelength Tx/Rx operation at 1490/1310nm
  • Spring-latch SFP Small Form-factor Pluggable) package with SC receptacle optical interface
  • Digital Receiving Signal Strength Indication (RSSI)

Product list:

GPON SFP
SST-GTSP2/1-B+43-S Optical Transceiver GPON OLT SFP 1490nm(Tx)/1310nm(Rx),2488M(Tx)/1244M(Rx),SC,SM, Class B+ DDM
SST-GTSP2/1-C+43-S Optical Transceiver GPON OLT SFP 1490nm(Tx)/1310nm(Rx),2488M(Tx)/1244M(Rx),SC,SM, Class C+ DDM
SST-GTSP2/1-C++43-S Optical Transceiver GPON OLT SFP 1490nm(Tx)/1310nm(Rx),2488M(Tx)/1244M(Rx),SC,SM, Class C++ DDM
SST-GUSP1/2-B+34-S Optical Transceiver GPON ONU SFP 1310nm(Tx)/1490nm(Rx),1244M(Tx)/2488M(Rx),SC,SM, Class B+ DDM
EPON SFP
SST-ETSP1/1-E2A43-S Optical Transceiver EPON OLT SFP 1490nm(Tx)/1310nm(Rx),1244M(Tx)/1244M(Rx),SC,SM, PX20+ DDM
SST-ETSP1/1-E2A43-ST Optical Transceiver EPON OLT SFP 1490nm(Tx)/1310nm(Rx),1244M(Tx)/1244M(Rx),SC,SM, PX20+ DDM, -40~85
SST-ETSP1/1-E2C43-S Optical Transceiver EPON OLT SFP 1490nm(Tx)/1310nm(Rx),1244M(Tx)/1244M(Rx),SC,SM, PX20++ DDM
SST-EUSP1/1-E2A34-S Optical Transceiver EPON ONU SFP 1310nm(Tx)/1490nm(Rx),1244M(Tx)/1244M(Rx),SC,SM, PX20+,DDM
SST-EUSF1/1-E2A34-S Optical Transceiver EPON ONU SFF 2*10  1310nm(Tx)/1490nm(Rx),1244M(Tx)/1244M(Rx),SC,SM, PX20+,DDM
