Direct Attached Cables

High Speed Cable is a kind of optical transceiver assembly widely applied in storage area network, data center,and high-performance computing connectivity. SisoTT can provide active DAC,passive DAC,active optical cables(AOC) and breakout cables.

  • Catalog
  • Warranty
  • Contact us

Product Description:

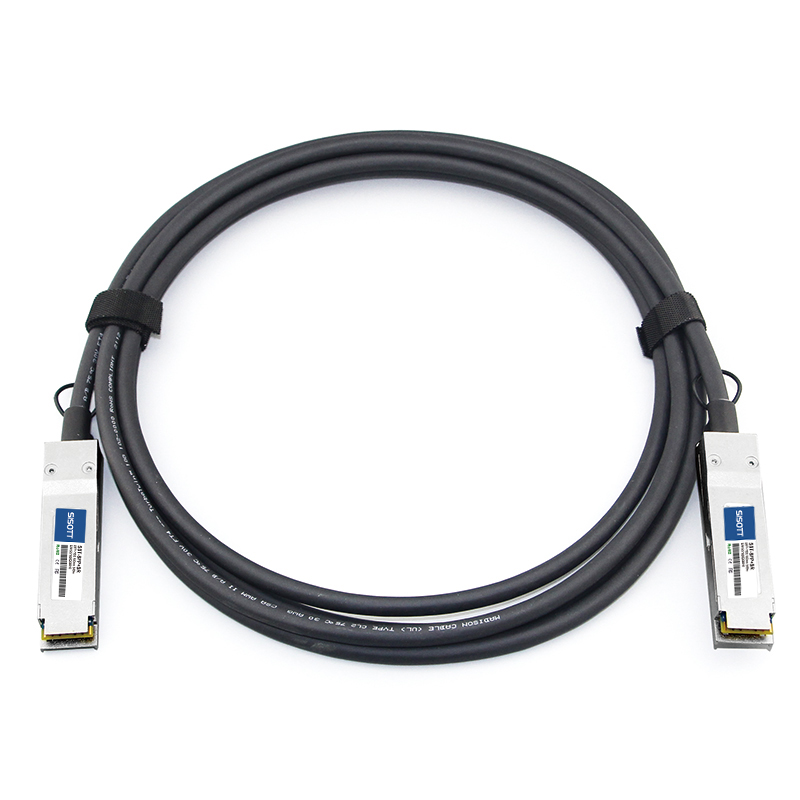

Direct Attach Cable, or DAC for short, is a kind of optical transceiver assembly widely applied in storage area network, data center, and high-performance computing connectivity etc. The DAC cables are used to connect one mobility access switch with another when forming a stack. SISOTT supplies various kinds of high speed interconnect DAC cable assemblies including 10G SFP+ Cables, 40G QSFP+ Cables, and 120G CXP Cables and so on. All of our direct attach cables can meet the ever growing need to cost-effectively deliver more bandwidth, and can be customized to meet different requirements. length: from 0.5m to 10m. AWG: 24,26,28,30 optional. Also customization is acceptable.


Product Classification List:

Part   No. Description
SSH-CX-SFP-XX 1G SFP to SFP Copper Passive Cable AWG30/28 Meters x= 0.5,1… XX= AWG 28 or 30
SSH-CX-SFP+-XX 10G SFP+ to SFP+ Copper Passive Cable AWG30/28 x Meters x=1,2,3 XX= AWG 28 or 30
SSH-CX-SFP+-24 10G SFP+ to SFP+ Copper Passive Cable AWG24 x Meters x=1,2,3...10
SSH-CX-SFP+-24T 10G SFP+ to SFP+ Copper Passive Cable AWG24 Industrial Grade x Meters x=1,2,3...10
SSH-CX-XFP-XX 10G XFP to XFP Passive Copper Cable x Meters x=1,2,3  XX= AWG 28 or 30
SSH-CM-XFP/SFP+-XX 10G XFP to SFP+ Passive Copper Cable x Meters x=1,2,3  XX= AWG 28 or 30
SSH-CX-QSFP+-24 40G QSFP+ to QSFP+ QDR Infiniband passive cable AWG24 xMeters x=1,2,3...7
SSH-CX- QSFP+/4SFP+-24 40G QSFP+ to 4*SFP+ QDR Infiniband passive cable AWG24 xMeters x=1,2,3...5
