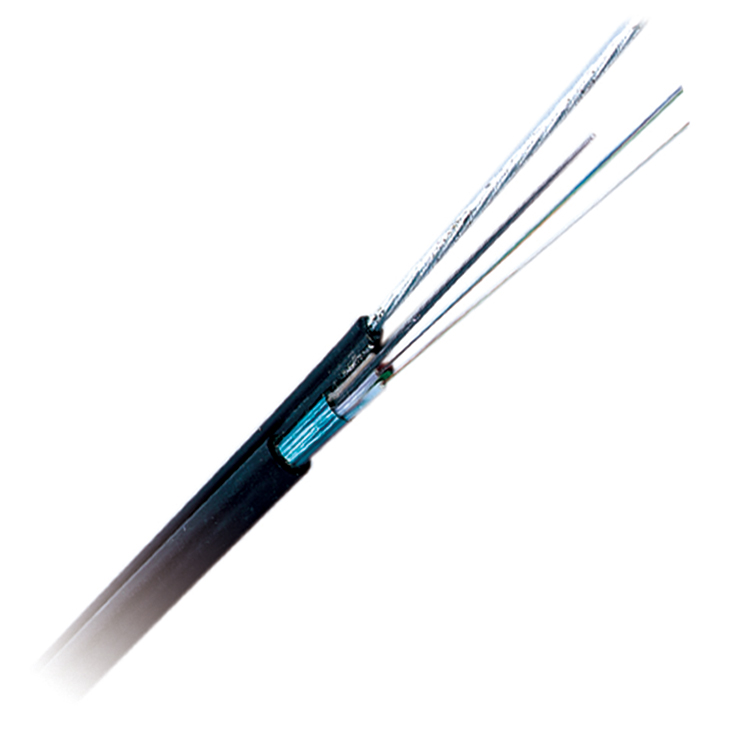

Overhead cable

Optical Fiber Cable is applied to direct buried/aerial/duct and access network, fiber to the Home. SisoTT can provide all kinds of fiber cable depending on customer’s needs.

  • Catalog
  • Warranty
  • Contact us
  • Cable Type: GYTC8S, or others

  • Cable Specification: 3.0×2.0

  • Cores Number: 1, 2, 4, 6, 8 cores fiber.

  • Central Strength Member: Steel or FRP.

  • Fiber Module Mode: SM or MM.

  • Fiber Color: Nature, Black, Grey, Yellow, Purple…

  • Fiber Type: Stranded loose tube cable with steel tape

  • Sheath Color: Nature

  • Sheath Material: LSZH/PVC/OFNR/OFNP/Plenum

  • Cable Dimension: 3.0 x 2.0mm

  • Cable Weight: 10.0Kg/km

  • Min. Bending Radius: 10mm (Static) 25mm (Dynamic)

  • Attenuation: 0.4 dB/km at 1310nm, 0.3dB/km at 1550nm

  • Short Term Tensile: 200N

  • Crush Resistance: 2200 N/100mm

  • Operation Temperature: -20~+60°C
