A Guide on Fiber Optic Cable

It is undeniable that our world today is built on the rapid transfer of massive amounts of information. Decades ago, data were transferred from a network device to another device through copper wires. But now, it has become apparent that fiber optic cables are steadily replacing copper wires as a better means for data transmission.

Inside a Fiber Optic Cable

The core of optical fibers can be plastic (used for very short distances), but most are made from glass. And glass optical cables are made from silica, which, in pure form, has a very low loss in infrared region of the optical spectrum. Designed for long distance, very high performance data networking and telecommunications, fiber optic cable uses light to transmit information while the copper wire uses electricity.

Internal Construction

A fiber optic cable is composed of the core, cladding, coating, strengthening fibers and cable jacket, with its core and cladding being the two main elements. The core is the light transmission area of the fiber. The cladding is the layer completely surrounding the core. Surrounding the cladding is usually another layer, called a coating.

The Internal Construction of an Optical FiberFigure 1: The Internal Construction of an Optical Fiber

Working Principle

The principle of light transmission in an optical fiber is known as the total internal reflection, which states that when the angle of incidence exceeds a critical value, light cannot get out of the glass; instead, the light bounces back in. Based on this principle, light can move easily down the fiber-optic line. When this principle is applied to the construction of the fiber-optic strand, it is possible to transmit information down fiber optic cable in the form of light pulses. The core must be a very clear and pure material for the light or in most cases near infrared light (850nm, 1300nm and 1500nm). That’s why glass and plastic are the main materials for optical fibers.

The Working Principle of an Optical FiberFigure 2: The Working Principle of an Optical Fiber

Primary Types of Fiber and Various Parameters

Generally speaking, there are three types of optical fiber cables, namely single-mode fiber, multimode fiber and plastic optical fiber (POF). The first two are made of glass while the last one is made of plastic.

 Single-mode fiber cable is a single strand (most applications use 2 fibers) of glass fiber with a diameter of 8.3 to 10 microns. With a relatively smaller core and narrow diameter, it can contain the beam of light in a much tighter space, which allows it to provide a higher transmission rate and up to 50 times more distance than multimode fiber, but it also costs more.

The Core of a Single-mode FiberFigure 3: The Core of a Single-mode Fiber

 Multimode fiber cable has a little bit bigger diameter and allows multiple modes of light to travel, which means it has more space to generate and collect light, thus leading to a lower cost. It is ideal for backbone applications in homes and businesses. However, in long cable runs (greater than 900 meters), multiple paths of light can cause signal distortion at the receiving end, resulting in an unclear and incomplete data transmission so designers now call for single-mode fiber in new applications using Gigabit and beyond.

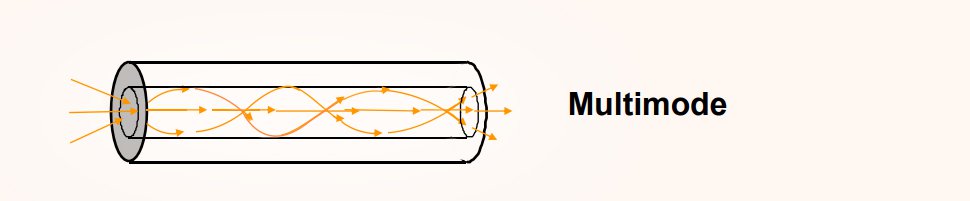

The Core of a Multimode FiberFigure 4: The Core of a Multimode Fiber

 POF is a large core step-index fiber with a typical diameter of 1 mm. This large size makes it easy to couple lots of light from sources and connectors and do not need to be high precision. As a result, typical connector costs are 10-20% as much as for glass fibers and termination may be as easy as cutting with a razor blade! Being plastic, it’s also rugged and easy to install without fear of damage. POF has always been "lurking in the background" in fiber optic; it's a specialty fiber useful for illumination and low speed short data links. There is now a greatly increased interest in POF, as R&D has given it higher performance to go along with its ease of installation and low cost.

The Installation of Fiber Optic Cable

With the features of high bandwidth, low power loss, light weight and so on, fiber optic cables have gained popularity among network service providers and are widely adopted for today’s network cabling. Although with so many advantages, it doesn’t mean that fiber cable installation needs no care. Attentions should also be paid when installing fiber cables at different places such as runs in the conduit, above ceilings and below floors, runs in cable trays and risers.

Conduit Cabling

It’s inflexible for conduit installation for a big difficulty to make moves, adds and changes. When pulling cable in conduit, all transition points should be kept smooth. Try to leave additional piece of conduit outside of the transition to keep the cable from resting on a sharp edge. Or you can use inner duct or flexible conduit to keep cables from damage. You also need pull boxes for fishing the run and looping the cable for the next length of conduit. To ease the installation, fish tapes or pull cords should always be placed in the conduit.

Note: The inside radius of conduit bends should be at least 10 times the diameter of the cable. Conduit runs should be limited to 100 feet, with no more than two 90-degree bends between pull points or boxes.

Dropped Ceilings and Raised Floors Cabling

Installation in drop ceilings or raised floors may be the easiest. Suspended ceilings consist of low-weight panels supported by a system of metal frames or grids attached to the ceiling. Usually these panels can be easily moved away from the grid when they are pushed up. Then more space can be left for other equipment installation. Cables in these spaces should be well supported and organized. You are suggested to use some tools for easy cable management like trays, J-hooks and cable ties.

Trays Cabling

Cables trays or ladder racks provide a convenient, safe, efficient location for optical fiber cable installation. Trays can be installed in ceilings, under floors and in riser shafts. Trays can provide good support and certain protection for cable. But you should still notice that cables may also suffer from stresses. When running the fiber cables in the trays, better avoid as much tension, crushing and bending as possible. Make sure the cabling routes are away from sharp turns, snags (sometimes from other cables) and rough surfaces. Try not to pull cable under or between heavier cable or multiple cables that may create huge stress. It’s also true to moves and adds of fiber cables. Do not forget to secure the cable to the tray with cables ties to avoid damage during changes, and do this every three feet.

Trays CablingFigure 5: Trays Cabling

Riser Cabling

For vertical cabling in risers, if possible, at least use the cable rated OFNR. When pulling cables vertically, use some device to support the cable without crushing the core. Cables should be supported with cable ties in wiring closet. And begin the installation from the top, making it easier comparing to pulling cable from the opposite direction. Maybe handling procedures of optical fiber cables produced by different manufacturers are different. So follow the manufacturer’s instructions at first.Figure 6: Riser Cabling
